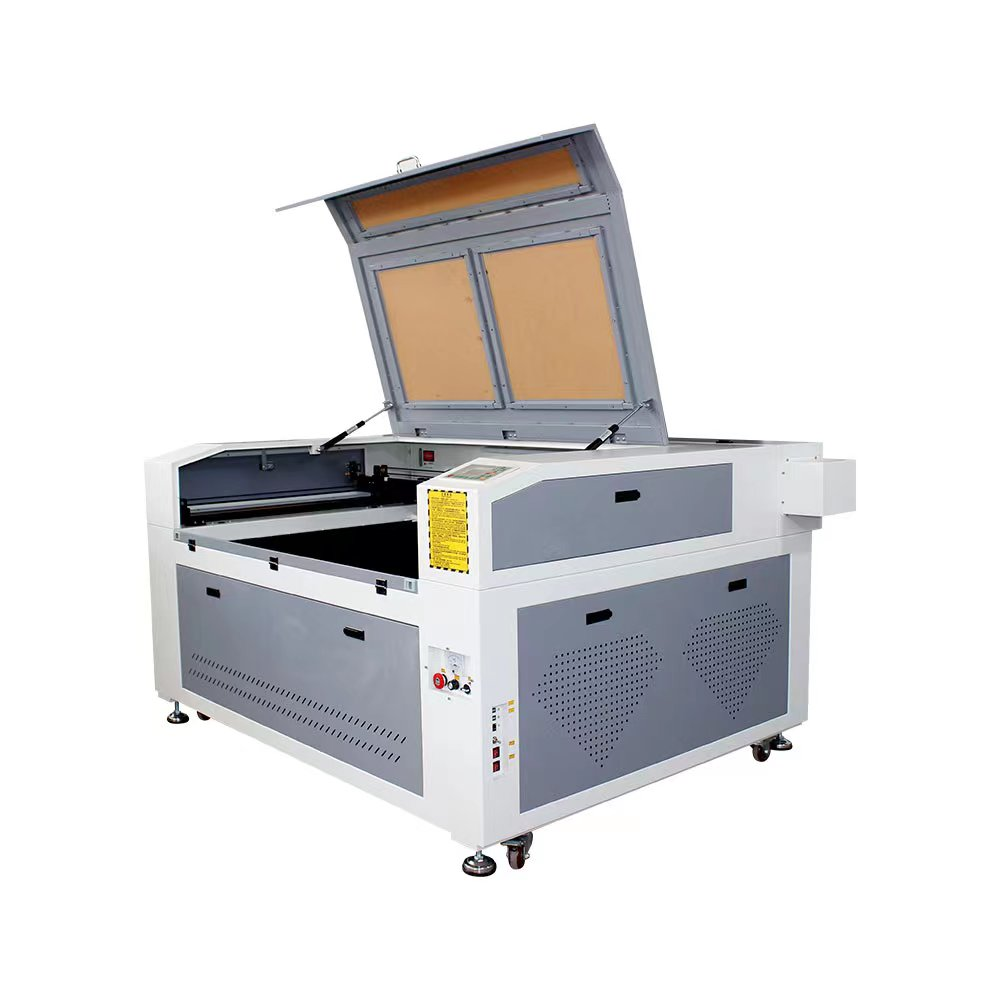

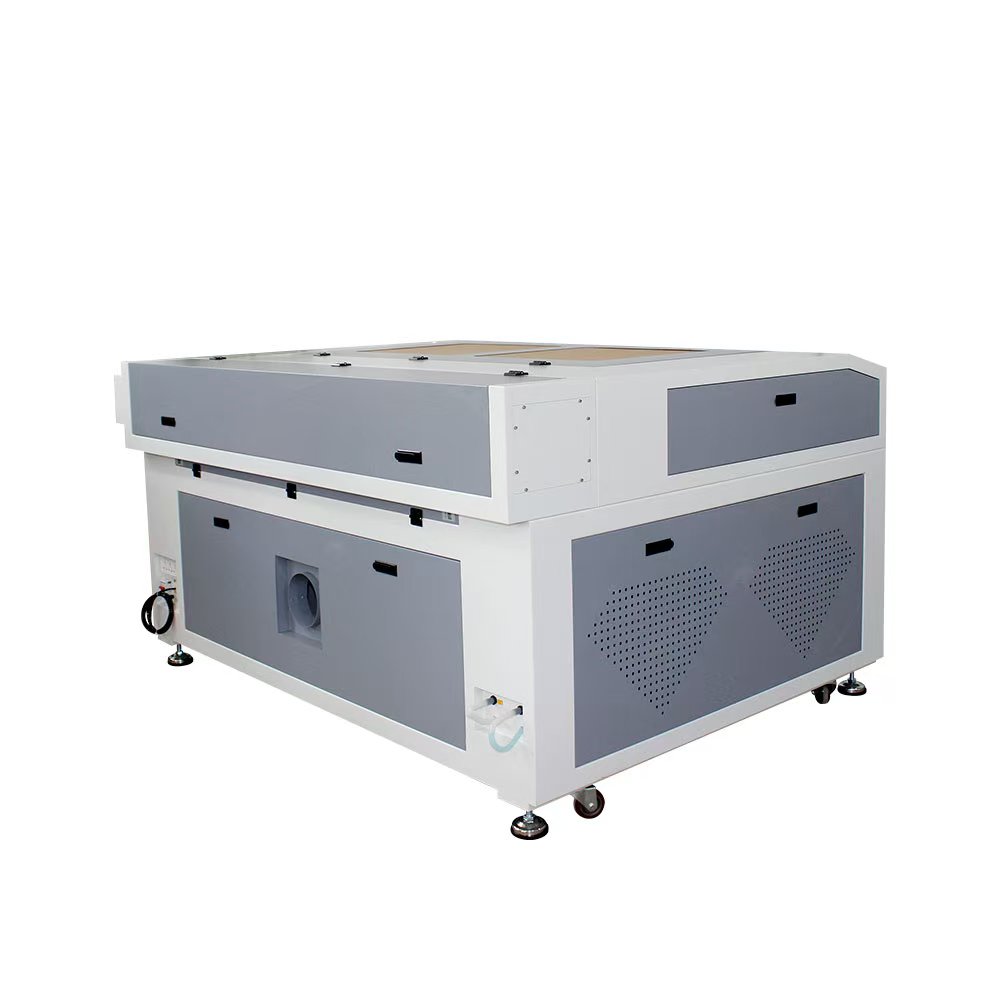

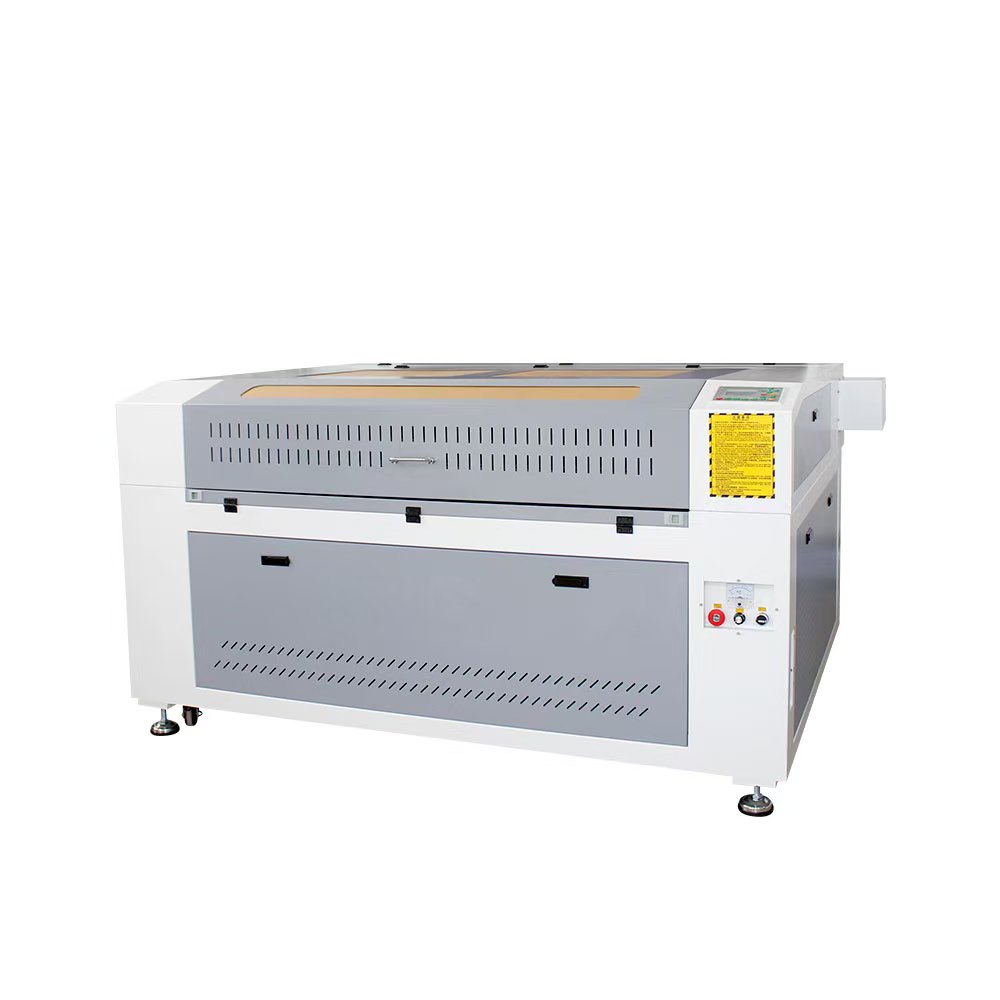

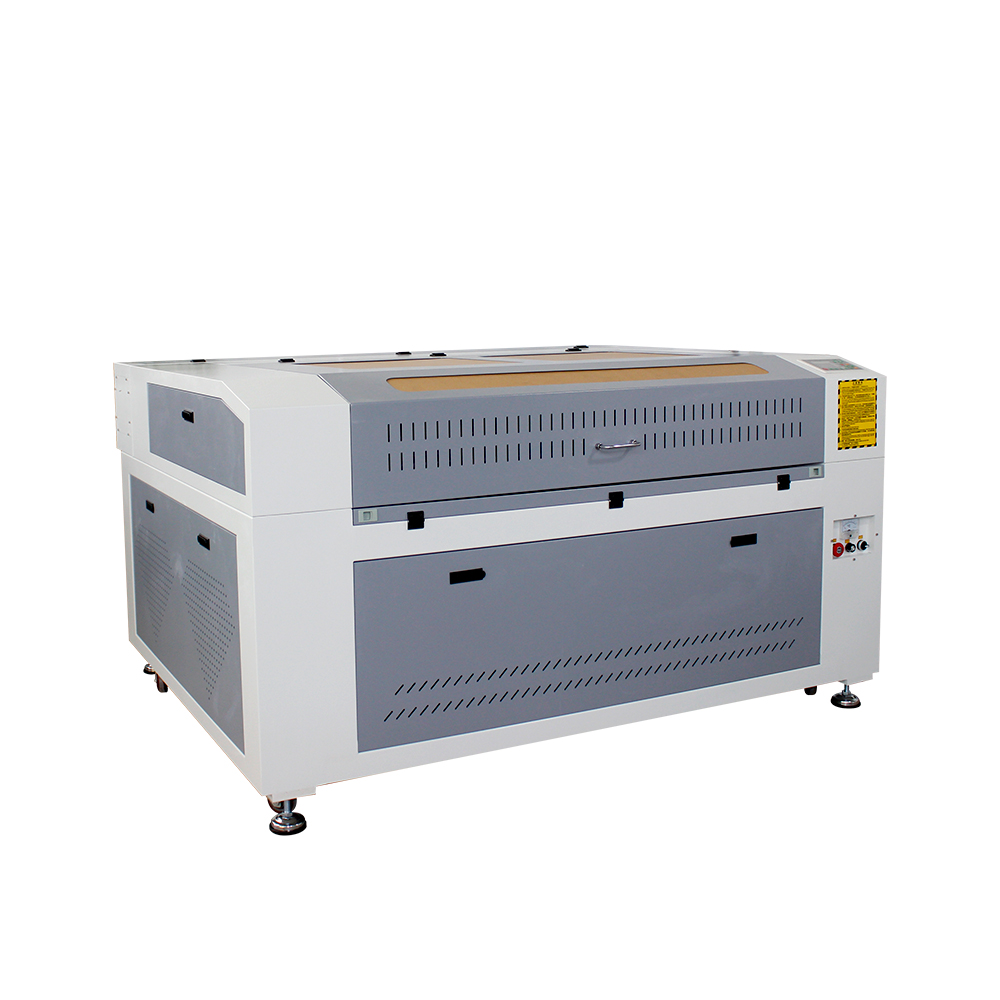

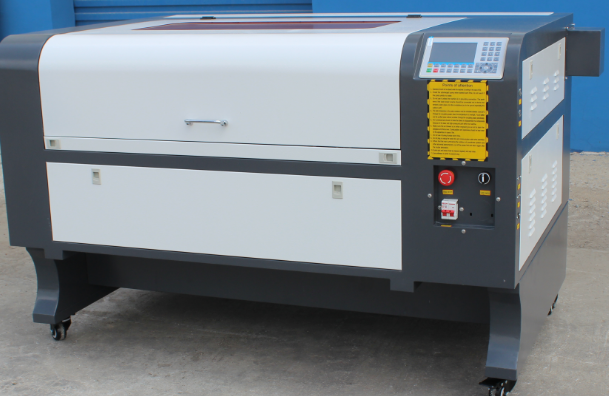

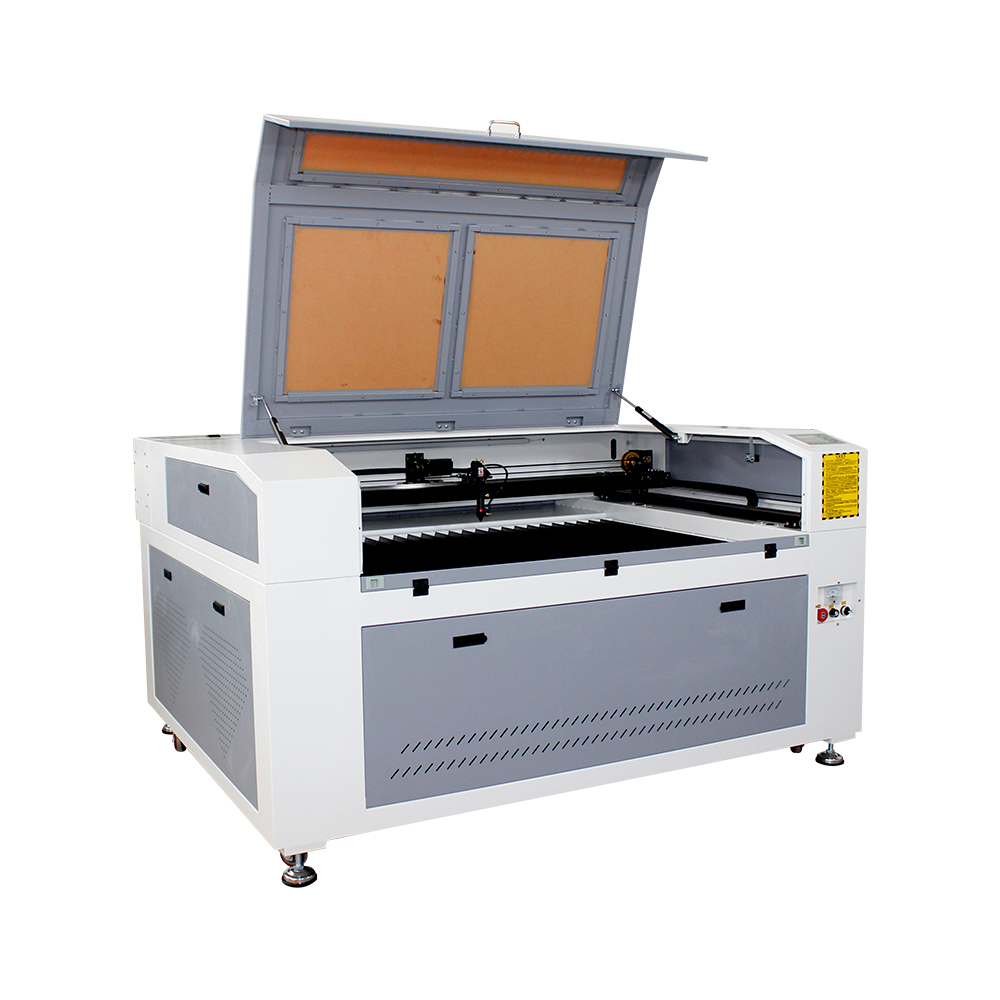

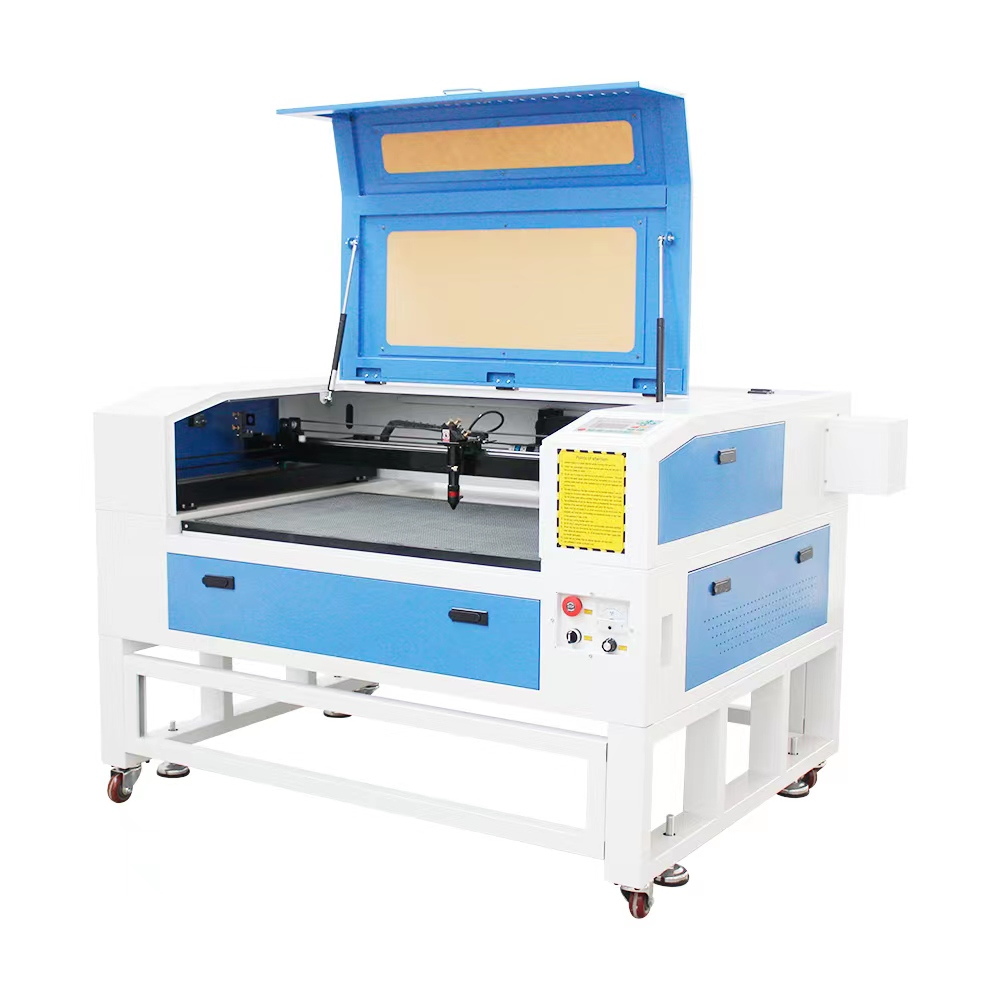

HPS-C1390
HYPERS LASER
Main configuration features:
1. Semi sheet metal design, environmentally friendly blue and white colors;
2. High strength integrated machine body, simple sheet metal;
3. Aluminum profile mechanical structure;
4. Authentic Leisai high-speed stepper motor;
5. Y-axis belt matched with Taiwan linear guide rail;
6. X-axis belt;
7. Stable output of high stability transformer laser power supply;
8. Independently customize national standard ultra-high voltage withstand high voltage lines;
9. Authentic Taiwan Shangyin/PMI high-speed linear guide rail;
10. Two imported optical lenses from the United States;
11. Qiancheng/Ruida offline touch color screen control card;
12. Industrial chiller CW5200;
13. Super strong suction design, 550W fan;
Processing industry and materials: suitable for industries related to cutting high-precision and high gloss organic materials/acrylic products, advertising industry, lighting industry, woodworking industry such as photo frames, building model industry, handicrafts, decoration industry, clothing sampling, leather industry, footwear industry, furniture industry, packaging and printing industry, craft gift industry, etc.
Machine parameters:
Processing format | 1300*900/1400*1000/1600*1000 |
power | 60W80W100W130W150W180W280 Wto choose from |

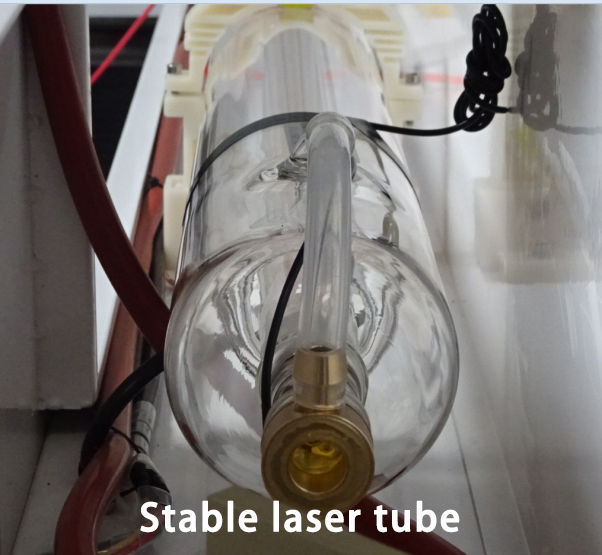

Laser type | Sealed water-cooled CO2 laser tube |
Engraving speed | 0-1000mm/s |
Cutting speed | 0-600mm/s (depending on the power of the test material) |
positioning accuracy | <0.01mm |
Minimum formed text | Number/letter: 1 * 1mm Chinese character: 1.5 * 1.5mm |
repeatability | ±0.05mm |
resolution | 1000DPI |
power supply | 220V±10％ 50Hz or 110V±10％ 60Hz |
support software | Art Cut, Photoshop (Convert Output) CorelDraw, AutoCAD (direct output) |
Support file formats | PLT/DXF/DST/BMP/AI etc.(Direct output) |
Whole machine weight | 450kg |
work environment | Temperature: 0-45 ℃ Humidity: 5% -95% |
defects liability period | One year, excluding consumables |
technical support | Telephone and video guidance Package for church use |

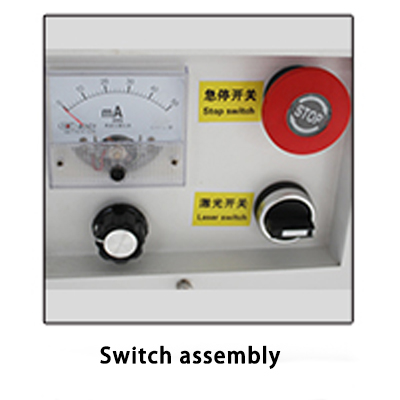

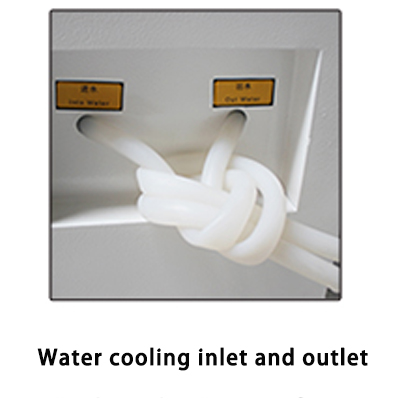

Machine partial diagram:
Qiancheng/Ruida offline panel Qiancheng/Ruida offline panel
-------------------------------------------------------------------------------------------------------------------------------
Cutting sample display
