HPS-MKTS
HYPERS LASER
Parameter:
Laser cleaning machine (portable) | ||||||
Model | HPS20W | HPS30W | HPS50W | HPS60W | HPS70W | HPS100W |
Laser | Domestic Raycus (IPG /CAS /MAX / JPT) | |||||
Laser power | 20w, 30w, 50w, 60w, 70w, 100, 120w | |||||
Laser Type | optical fiber | |||||
Supported formats | DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO, | |||||
Marking speed | ≤8000mm/S | |||||
Marking depth | ≤0.4mm | |||||
Laser wavelength | 1064nm | |||||
Marking Line | 0.06-0.1mm | |||||
Line Width | 0.06mm | |||||
character | 0.15mm | |||||
Resolution | 0.01mm | |||||
Graphics Format | BMP, PLT, DST, DXF, AI | |||||
Software Support | TAJIMA, CorelDraw, Photoshop, AutoCAD | |||||
Device size | 760 * 680 * 770mm(Please consult for details) | |||||
Equipment weight | 70 / 80kg(Different configurations have different differences) | |||||
power | ≤500W | |||||
Optional accessories | Optional custom parts such as rotating shaft/goggles/external red light auxiliary/lighting | |||||
Applied materials:
Metals (gold, silver, copper, alloys, aluminum, steel, stainless steel)
Non-metals (plastics: engineering plastics and hard plastics, etc.) electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, etc.
Application areas:
electronic components, integrated circuits (IC), electrical circuits, mobile communications, hardware products, knives and kitchen utensils, precision instruments, glasses and clocks, computer keyboards, jewelry, auto parts, plastic buttons, plumbing accessories, sanitary ware, PVC pipes, medical equipment, packaging bottles, etc.
Sample：
Close-up pictures：

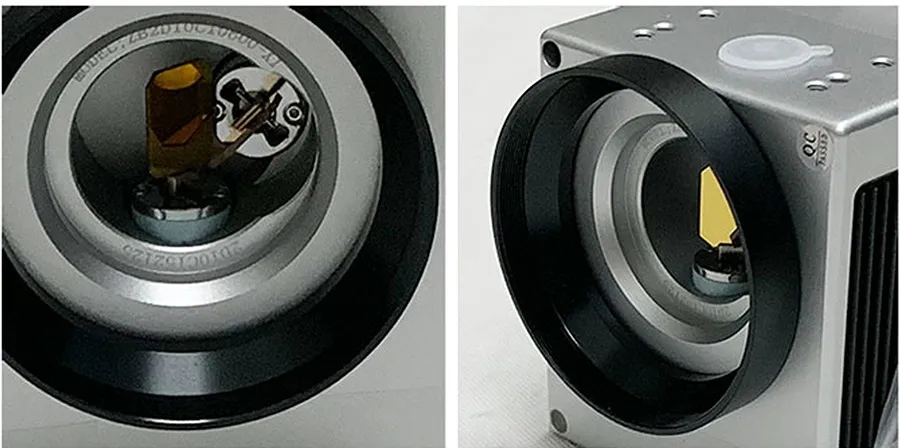

Laser scanning head:
high-speed motor, faster response, high-reflective lens with high reflectivity, stronger laser force, fast response capability of 0.7ms, can achieve high-speed marking and high precision.
Laser source:
The laser source adopts the current internationally advanced semiconductor laser power supply solution, and is produced with high-quality components. It has the advantages of low output noise, stable current, strong anti-interference ability, and has a voltage stabilization and constant current dual protection circuit to prevent overshoot, recoil and anti-surge, ensuring the stable operation and service life of the laser. Contains voltage clamping, overvoltage and overcurrent protection, and supports overheating protection. Contains undervoltage protection and overcurrent fuse protection.
Parameter:
Laser cleaning machine (portable) | ||||||
Model | HPS20W | HPS30W | HPS50W | HPS60W | HPS70W | HPS100W |
Laser | Domestic Raycus (IPG /CAS /MAX / JPT) | |||||
Laser power | 20w, 30w, 50w, 60w, 70w, 100, 120w | |||||
Laser Type | optical fiber | |||||
Supported formats | DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO, | |||||
Marking speed | ≤8000mm/S | |||||
Marking depth | ≤0.4mm | |||||
Laser wavelength | 1064nm | |||||
Marking Line | 0.06-0.1mm | |||||
Line Width | 0.06mm | |||||
character | 0.15mm | |||||
Resolution | 0.01mm | |||||
Graphics Format | BMP, PLT, DST, DXF, AI | |||||
Software Support | TAJIMA, CorelDraw, Photoshop, AutoCAD | |||||
Device size | 760 * 680 * 770mm(Please consult for details) | |||||
Equipment weight | 70 / 80kg(Different configurations have different differences) | |||||
power | ≤500W | |||||
Optional accessories | Optional custom parts such as rotating shaft/goggles/external red light auxiliary/lighting | |||||
Applied materials:
Metals (gold, silver, copper, alloys, aluminum, steel, stainless steel)
Non-metals (plastics: engineering plastics and hard plastics, etc.) electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, etc.
Application areas:
electronic components, integrated circuits (IC), electrical circuits, mobile communications, hardware products, knives and kitchen utensils, precision instruments, glasses and clocks, computer keyboards, jewelry, auto parts, plastic buttons, plumbing accessories, sanitary ware, PVC pipes, medical equipment, packaging bottles, etc.
Sample：
Close-up pictures：
Laser scanning head:
high-speed motor, faster response, high-reflective lens with high reflectivity, stronger laser force, fast response capability of 0.7ms, can achieve high-speed marking and high precision.
Laser source:
The laser source adopts the current internationally advanced semiconductor laser power supply solution, and is produced with high-quality components. It has the advantages of low output noise, stable current, strong anti-interference ability, and has a voltage stabilization and constant current dual protection circuit to prevent overshoot, recoil and anti-surge, ensuring the stable operation and service life of the laser. Contains voltage clamping, overvoltage and overcurrent protection, and supports overheating protection. Contains undervoltage protection and overcurrent fuse protection.
