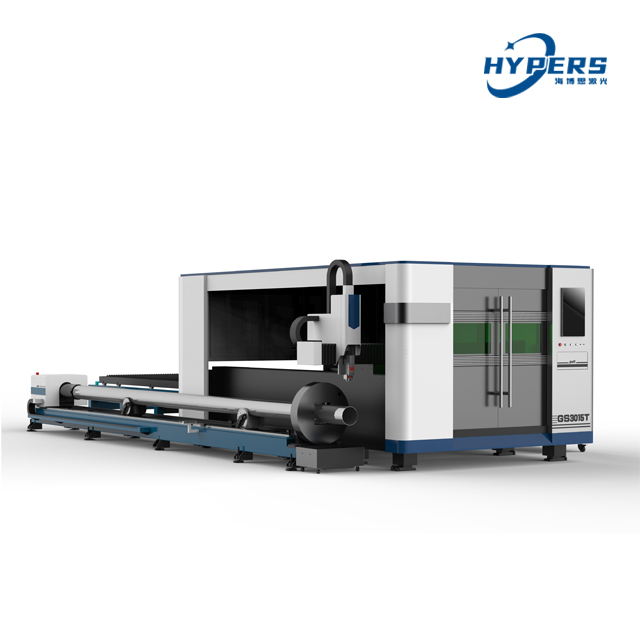

Application direction of high-power laser plate tube integrated machine

1. Multi industry coverage

-Sheet metal processing: suitable for cutting complex metal parts and precision mechanical components (such as instruments, metal molds, etc.).

-Automotive manufacturing: used for cutting body panels, exhaust pipes, frames and other components to meet high-precision requirements.

-Architecture and Decoration: Cutting steel structural materials such as stainless steel guardrails, curtain wall keels, and metal doors and windows.

-Furniture and Home Appliances: Processing metal furniture frames, kitchen and bathroom equipment (such as sinks, gas stove panels), etc.

-Advertising and Craftsmanship: Supports personalized cutting of metal signage, LED advertising characters, and craft gifts.

-Energy and Transportation: Applied to the processing of oil pipelines, ship components, and metal parts for rail transit.

2. Material adaptability

-* * Plate * *: Can cut carbon steel (0-60mm), stainless steel (0-60mm), aluminum alloy (0-45mm), etc.

-* * Pipe Material * *: Supports cutting, punching, and chamfering processes for round pipes, square pipes, and special-shaped pipes (such as U-shaped and flat pipes).

3. Technical scenarios

-Complex graphic processing: high-precision cutting of arbitrary patterns and hollow designs through CAD/CAM software.

-Groove cutting and micro connection: meet the complex structural requirements of eccentric/non eccentric intersection between branch pipes and main pipes.

-Intelligent Production Integration: Supports remote operation, automatic nesting optimization, and adapts to Industry 4.0 automated production lines.

---

Core advantages

1. Efficiency and accuracy

-Cutting speed increased by more than 5 times: Compared to traditional cutting and drilling processes, a single machine can complete multiple tasks.

-* * Precision up to millimeter level * *: Servo motor+precision gear rack transmission, with extremely small positioning error and a narrow cut of 0.1mm.

-Thick plate cutting capability: Supports cutting up to 60mm carbon steel, stainless steel plates, and 45mm aluminum alloy.

2. Multi functional integration

-* * Dual use * *: The cutting platform for plates and pipes can be freely switched, saving equipment investment and factory space.

-Intelligent CNC system: supports groove cutting, automatic focusing, remote fault diagnosis, and reduces the operating threshold.

3. Cost and Maintenance

-Energy saving and environmental protection: The electro-optical conversion efficiency is over 30%, and the power consumption is only one-third of traditional equipment.

-Low maintenance cost: No consumables (such as reflective lenses), fiber laser has a lifespan of up to 100000 hours.

-High material utilization rate: Intelligent nesting software reduces waste of scraps and raw material loss by 20% -30%.

4. progressiveness technology

-High power laser: Supports 15000W power and can handle ultra thick plates and complex shaped tubes.

-Flexible track design: Suitable for cutting deformed pipes, double chuck clamping ensures processing stability.

-Industrial grade protection: equipped with dust removal system and laser protection mechanism to ensure long-term stable operation.

---

Typical application cases

-Automotive exhaust pipe processing: Complete round pipe cutting, flange drilling, and groove cutting in one go.

-Building curtain wall keel: Batch cut complex connection holes on 6-meter long stainless steel square tubes.

-* * Customized metal furniture * *: Carving artistic patterns on 2mm aluminum plates through hollow out technology.

Through the above functions and advantages, high-power laser plate tube integrated machines have become the core equipment for the metal processing industry to achieve efficient, precise, and intelligent upgrades.
