GS3015

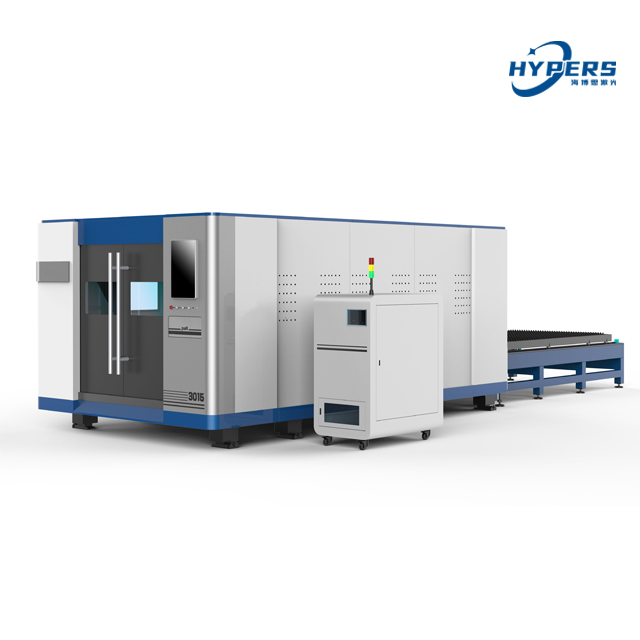

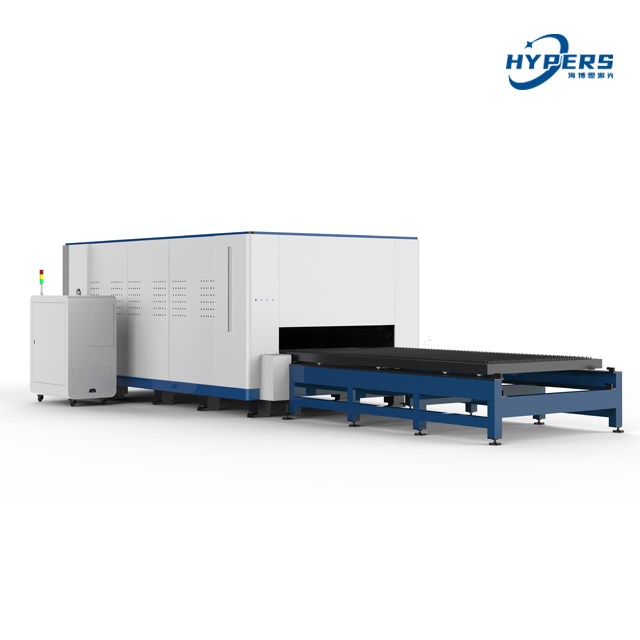

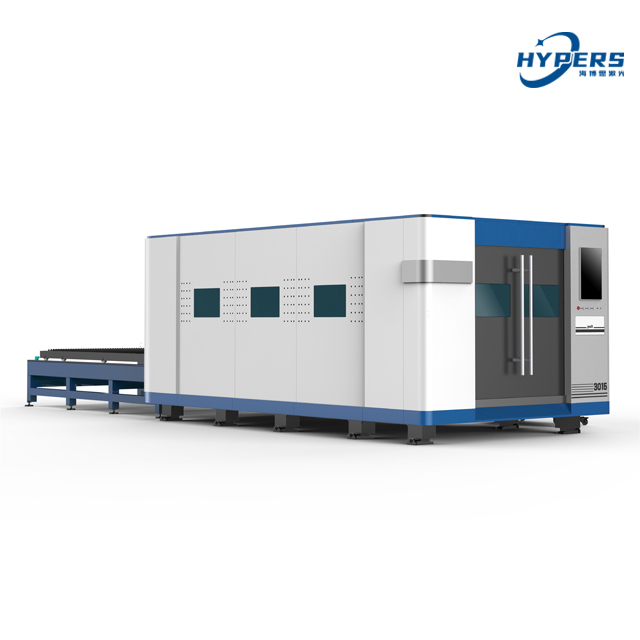

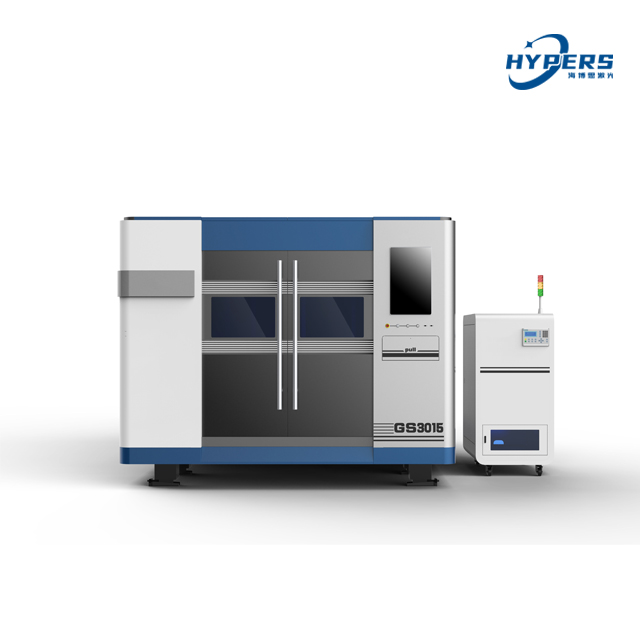

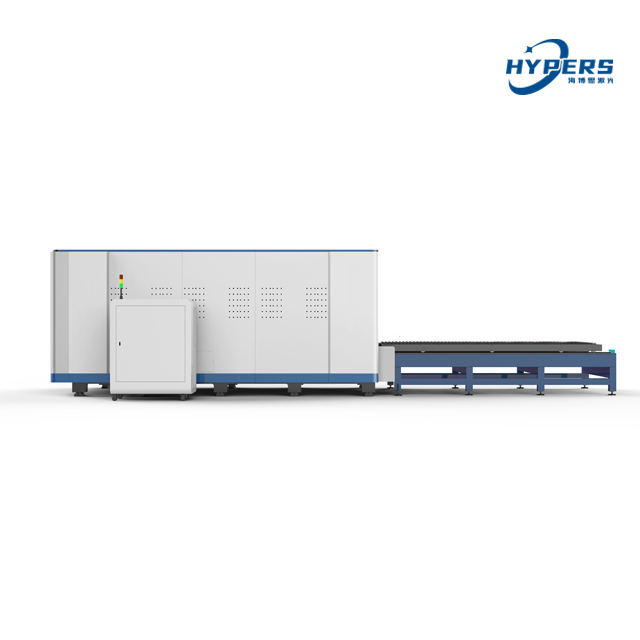

GS3015 Enclosed Fiber Laser Cutting Machine
Features：
1. The hardness and strength of the thickened upgraded plate welding bed are more excellent. The thickened mortise and tenon welding bed chassis is more stable, ensuring the stability and strength of the high-power equipment bed, ensuring that the equipment maintains excellent product performance under high-speed operation

2. Intelligent partition dust removal system, the upgraded dust removal system improves the sensitivity of the dust removal system. The intelligent partition system works in real time according to the cutting work area. The partition dust removal is conducive to the formation of an effective negative pressure area, and the negative pressure area is more concentrated and the dust removal effect is better

3. Closed-loop space design, no smoke and dust overflow, dust removal is more environmentally friendly, The equipment adopts a closed full-protection cutting area, which is conducive to reducing the harm of smoke and light radiation to the human body and avoiding the pollution of smoke to the environment. It meets the rigid requirements of the country for environmental protection. The closed protection design is more conducive to the collection of smoke and dust and the optimization of dust removal functions.

4. The transmission system adopts an internationally renowned brand, with stable transmission, fast speed, high positioning accuracy, stable operation, low noise, shock absorption and buffering, compact center distance and small appearance, constant transmission ratio, wide range of circumferential speed and power selection, and its transmission is relatively accurate, efficient, compact, reliable and long life. The instantaneous transmission ratio is constant, the transmission ratio range is large, and it can be used for deceleration or acceleration. The range of speed (circumferential speed of knuckle circle) and transmission power is large, which can be used for high-speed,
 medium-speed and low-speed transmission; the power applicability range is wide, the transmission efficiency is high, and it is suitable for close-range transmission.

5. Add an intelligent monitoring system to track the cutting status in real time and reduce the accident rate. The equipment is equipped with a video monitoring system inside the closed full protective cover and at the rear of the protective cover. It can observe the places that are not available in reality in real time online, and observe the real-time operation of the equipment, etc. The real-time action status of the cutting head and the exchange status of the rear exchange table can be clearly seen on the operating table.

6. Obstacle avoidance system and automatic edge patrol system improve cutting effect and cutting efficiency. The obstacle avoidance system can reduce the collision of the plate with the laser head in the case of sudden accidents during the cutting state of the cutting head to avoid damage to the laser head. The automatic edge search technology is used in the laser cutting machine, which can well solve the problem of low material utilization in the processing of large-format and medium-thick metal plates. It can not only save the time of calibrating the plate, effectively improve production efficiency, but also bring objective benefits to users and improve market competitiveness.

7. The cutting process is upgraded to a higher cutting yield. The laser cutting process is constantly innovating and developing. Relying on market demand, in order to adapt to more diversified processing environments and processing needs to better meet customer needs, a series of complete plate processing solutions have been gradually formed. Fiber laser cutting machines with different powers and processing formats can operate efficiently and stably in the sheet metal industry. The processed workpieces are of high quality and practical. After the workpieces are cut and formed, they can be directly processed by downstream products.

8. Automatic focusing laser head. The machines are equipped with laser heads with automatic focusing function. The focus can be adjusted automatically. It is suitable for a variety of focal lengths without manual operation. It is convenient, fast and more accurate. The same laser head can quickly replace focusing lenses with different focal lengths to meet the cutting of plates of different thicknesses. The laser head focusing components are all-around water-cooled to achieve high-power, small-volume long-term cutting without heating or fogging. It has the following main features: (1) The focus can be adjusted automatically, suitable for a variety of focal lengths; (2) Automatic focus function, capacitive sensor, fully automatic follow-up system; (3) Composite lens, built-in water cooling structure; (4) Double water cooling constant temperature guarantee for collimation and focusing components; (5) Drawer-type lens holder, quick replacement of protective lens; (6) Smooth and efficient airflow design; (7) Suitable for all kinds of fiber lasers; (8) Short and long focal lengths are universal, and can achieve the best cutting effect for thin or thick plates; (9) All are equipped with collimation protection mirrors to better protect the collimation mirrors; (10) The circumferential position of QBH is adjustable to ensure that the red dot of each QBH faces outward, which is convenient for plugging and unplugging the fiber head: the focus position visual window ensures that the input focus and the output focus are accurately consistent.

9. Steel mold cast aluminum beam, the equipment uses steel film high-pressure cast aluminum beam, which has the following main features ① High precision. After artificial aging, solution treatment and fine processing, the beam has good integrity, rigidity, toughness and ductility. ② Fast speed. Aluminum alloy has the metal characteristics of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision. ③ High efficiency. The light-weight beam can ensure the rapid operation of the equipment, improve processing efficiency, and ensure processing quality. The aluminum beam can not only ensure the high-speed operation of the laser cutting machine, but also ensure the accuracy and efficiency of cutting.

If you want to ensure the service life and accuracy of a large-format laser cutting machine (for example, 4020 (inclusive) and above), the aluminum beam is undoubtedly a good choice, which can not only reduce time costs and time losses. Moreover, after the same number of years of use, the aluminum beam can ensure cutting accuracy and relieve the kinetic energy brought by the high-speed movement of the laser head.

Parameter：

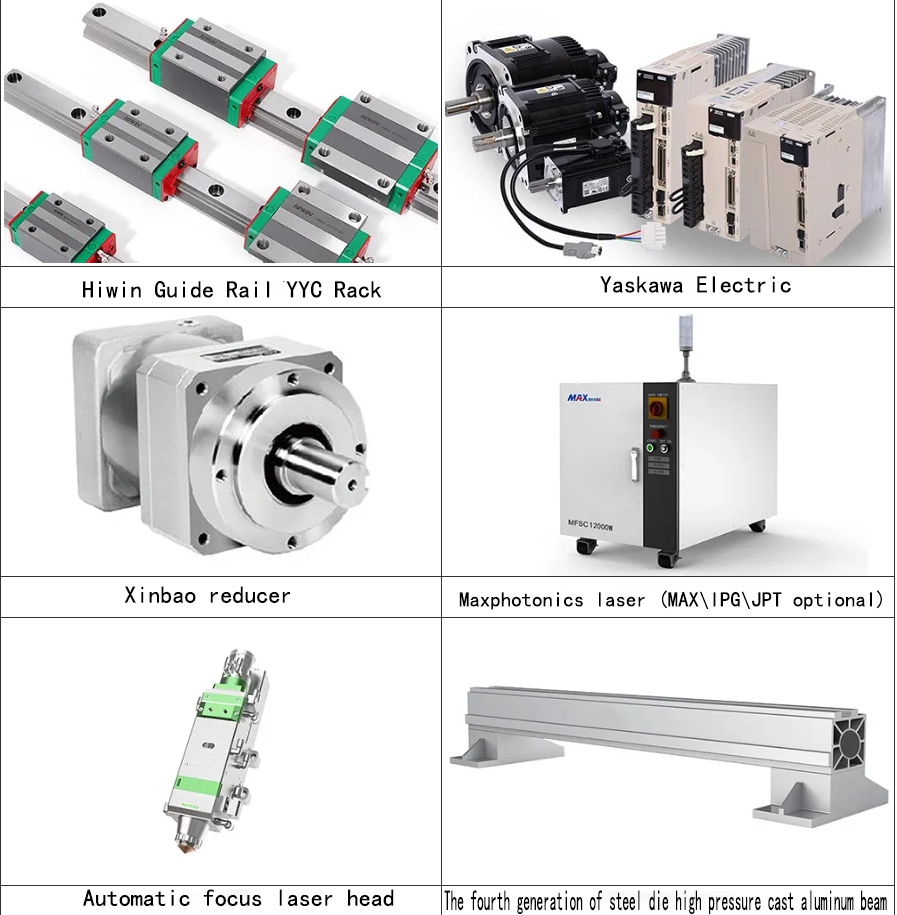

Key accessories:

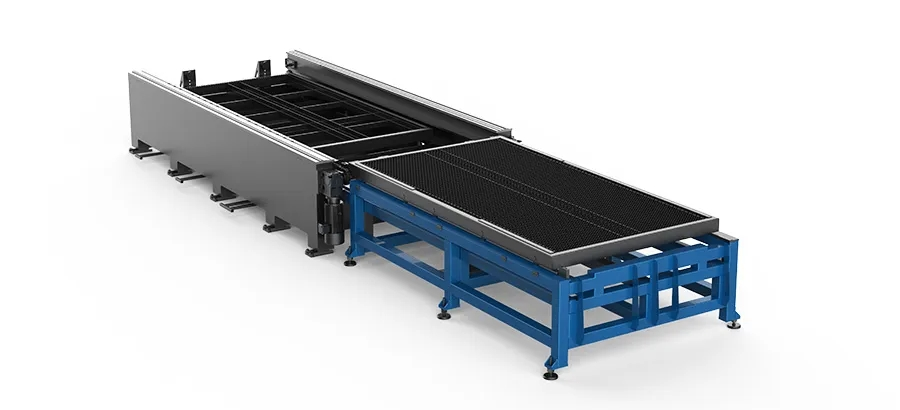

Plate welding bed design: bed strength is higher, double platforms are seamlessly connected, no deformation, and higher cutting accuracy.

Application Areas:

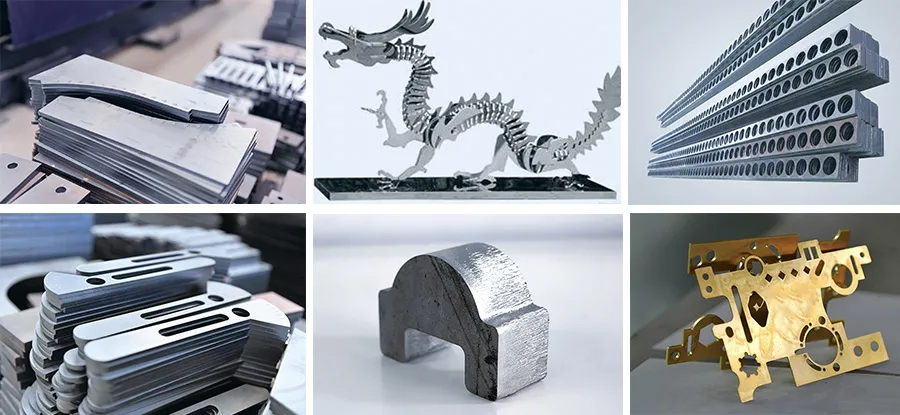

Cutting samples:
