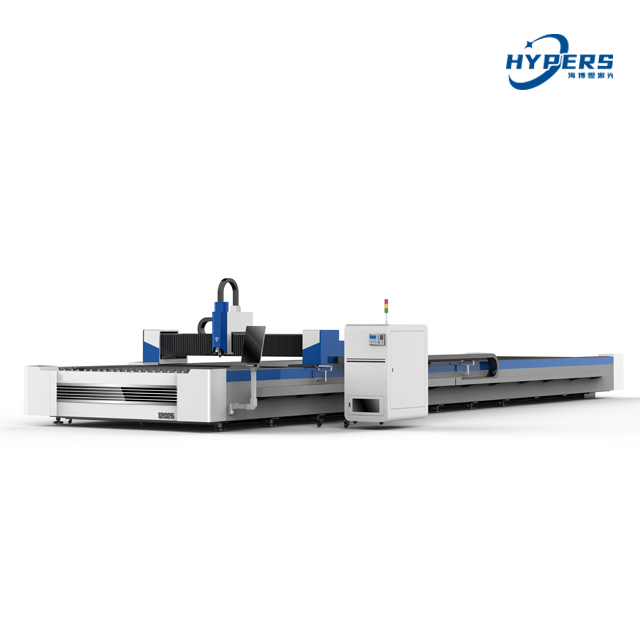

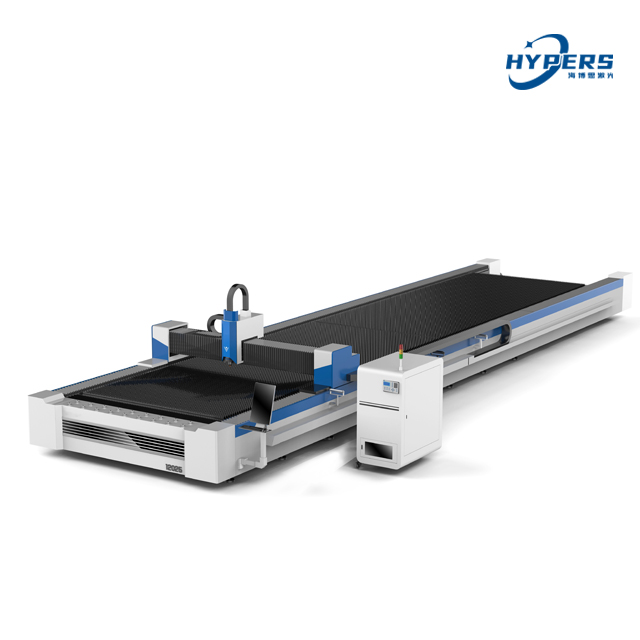

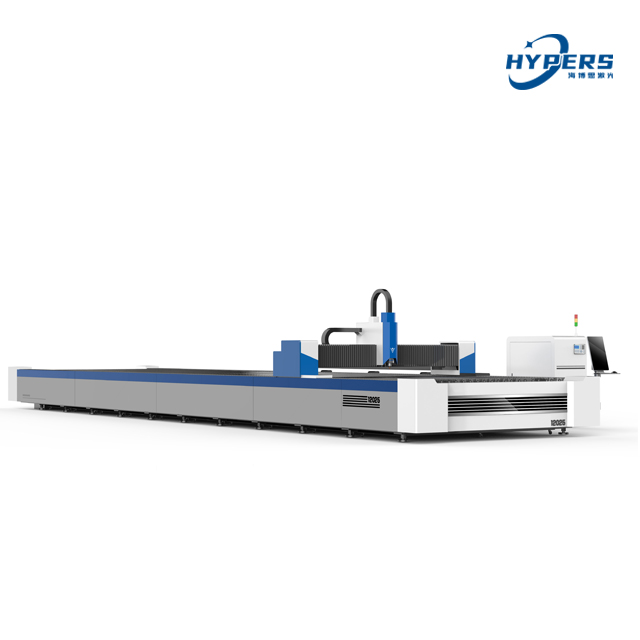

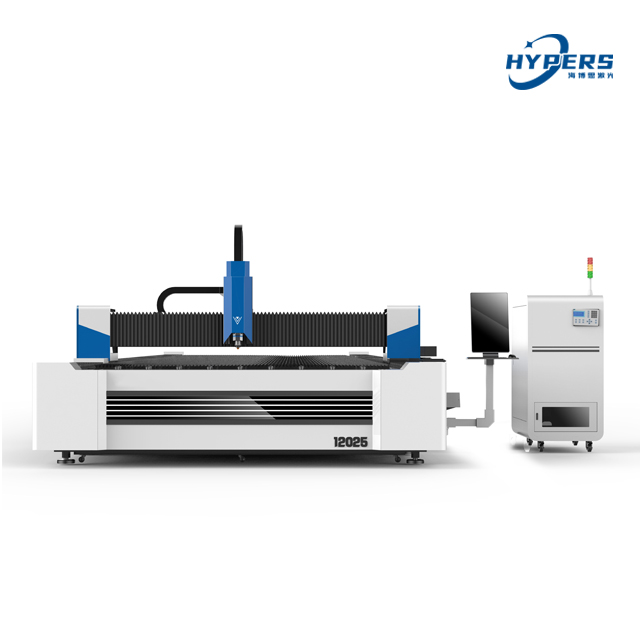

JS12025
JS12025
Product Features
1. A fully welded bed with superior hardness and strength performance,

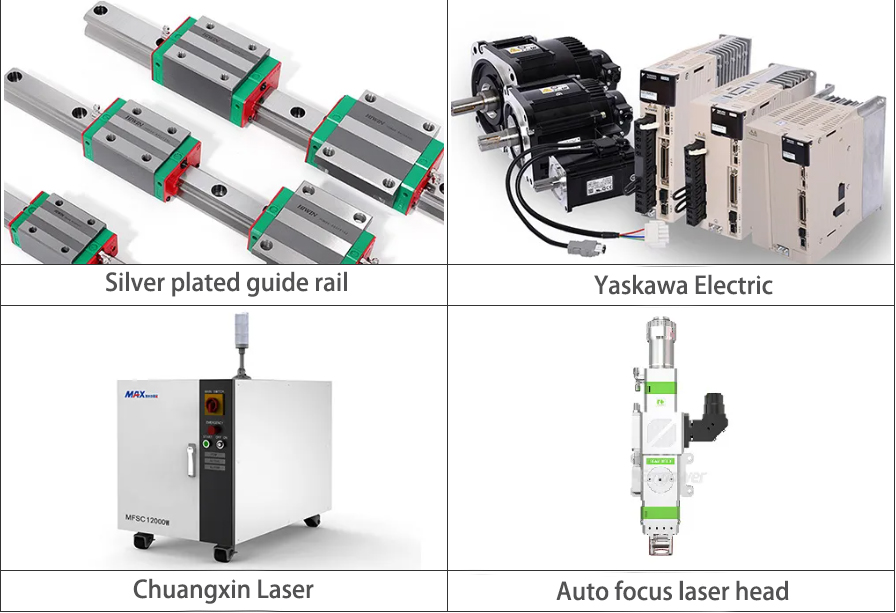

2. The transmission system adopts internationally renowned brands, with smooth transmission, fast speed, and high positioning accuracy.
3. 24 grid partition dust removal, intelligent control of dust removal area, more significant dust removal effect
4. Add an intelligent monitoring system to track cutting status in real-time and reduce accident rates.
5. Add obstacle avoidance systems and automatic edge patrol systems to improve cutting effectiveness and efficiency.
6. Newly upgraded cutting technology with higher cutting yield rate
7. Automatic focusing laser head
8. Steel mold cast aluminum crossbeam
parameter:
Laser cutting machine for sheet metal | |||
model | 6025JS | 8025JS | 12025JS |
cutting range | 3000*1500mm | 4000*2000mm | 6000*2000mm |
Mechanical positioning accuracy | ±0.05mm/m | ||
Mechanical repeat positioning accuracy | ±0.03mm/m | ||
Maximum acceleration | 1.2G | ||
Maximum positioning speed | 120m/min | ||
laser power | 3KW-12KW | ||
Other cutting formats can be customized | |||
Important accessories:

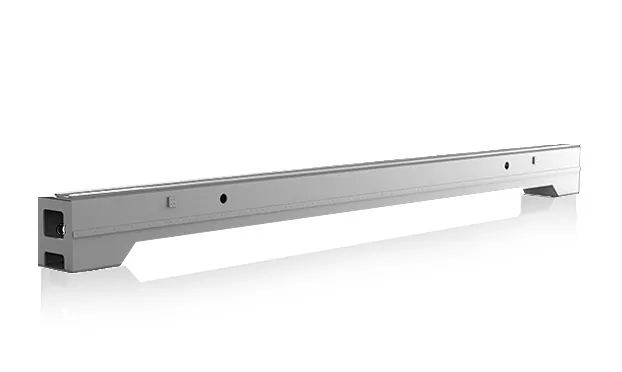

Fourth generation aviation aluminum steel mold cast aluminum crossbeam: lightweight texture and high strength.

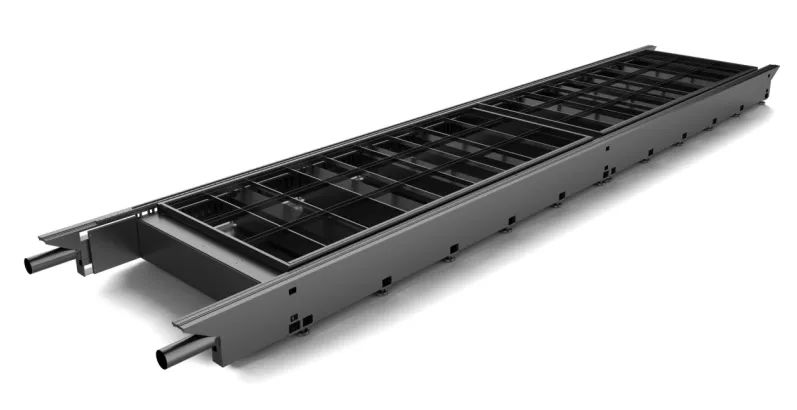

Board welding bed design: The bed has higher strength, seamless connection between dual platforms, no deformation, and higher cutting accuracy
This bed should reflect the characteristics of partitioned dust removal
